Braid Optimized for Bending (BOB®) 12 Strand

BOB® 12 strand is a high strength, low elongating single braided rope construction with excellent long term creep resistance and superior cyclic fatigue performance, especially in bend-over-sheave applications. BOB® 12 Strand comes standard with a specially formulated coating that is designed to maximize the rope’s durability in bending situations.

BOB® 12 Strand is easily spliced using a simple lockstitch type splice, brummel splice, 4-3-2 or 5-4-3 tuck splice. The soft, torque free braided construction provides ease of handling.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
0.1	0.3	0.25	1,260	1,400
1/8	3/8	0.41	1,900	2,100
3/16	9/16	1.4	5,400	6,000
1/4	3/4	2.15	7,700	8,600
5/16	15/16	3	13,900	15,400
3/8	1-1/8	4.6	17,300	19,200
7/16	1-1/4	6.45	23,900	26,600
1/2	1-1/2	6.67	28,100	31,200
9/16	1-3/4	8.55	40,100	44,600
5/8	2	13.5	51,400	57,100
3/4	2-1/4	17.8	68,500	76,100
7/8	2-3/4	26.1	92,600	102,900
1	3	32	110,000	122,200
1-1/8	3-1/2	43.2	147,000	163,300

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
2.5	0.3	0.38	0.6	0.6
3	3/8	0.61	0.9	1.0
5	9/16	2.09	2.5	2.7
6	3/4	3.21	3.5	3.9
8	15/16	4.48	6.3	7.0
9	1-1/8	6.86	7.8	8.7
11	1-1/4	9.62	10.8	12.1
12	1-1/2	9.95	12.7	14.2
14	1-3/4	12.76	18.2	20.2
16	2	20.1	23.3	25.9
18	2-1/4	26.5	31.1	34.5
22	2-3/4	38.8	42	46.7
24	3	47.6	49.9	55.4
28	3-1/2	64.3	66.7	74.1

Technical Information

Specific gravity 1.18*
Melting point 284°F (140°C)
Critical temp. 150°F (65°C)
Coefficient of friction 0.12–0.15*
Elongation at break 3%–4%
Fiber water absorption <0.1%
UV resistance good
Wet abrasion superior
Dry abrasion superior

* value based on data supplied by the
fiber manufacturer for new, dry fiber

See what Customers Say

“What a great product! The BOB^® cord enabled us to design an indoor rowing machine with superior cyclic loading performance over a large number of pulleys. We’ve never had a BOB cord failure!”

Features / Benefits

High strength
Low stretch
Ultra low creep
Soft hand
Torque free
Easy splicing

Applications

Replacement for wire rope deep water lifting
Use on drum and traction winches
Active heave compensation systems
Heavy lift slings
High fatigue applications
Seismic tow cables
Tether applications
Theatrical rigging

BOB® 12 Strand Tech Sheet

Braid Optimized for Bending (BOB®) 12×12

Back to top

BOB® 12×12 Strand is a high strength, low elongating single braided rope construction with excellent long term creep resistance and superior cyclic fatigue performance, especially in bend-over-sheave applications. In the 12×12 strand construction, each strand consists of a smaller 12 strand rope produced using a proprietary blend of fibers. This design maximizes the strength of the fiber while allowing damaged rope strands to be removed and replaced if necessary. BOB® 12×12 Strand comes standard with a specially formulated coating that is designed to maximize the rope’s durability in bending situations.

BOB 12×12 Strand is easily spliced using a lockstitch type splice, Brummel splice, 4-3-2 or 5-4-3 Tuck splice. The soft, torque free braided construction provides easy handling.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
1-1/4	3-3/4	45.2	165,000	183,300
1-5/16	4	55.2	196,000	217,800
1-1/2	4-1/2	62.9	221,000	245,600
1-5/8	5	85.1	291,000	323,300
1-3/4	5-1/2	102.7	314,000	348,900
2	6	124.9	355,000	394,400
2-1/8	6-1/2	146.6	428,000	475,600
2-1/4	7	168.4	481,000	534,400
2-1/2	7-1/2	198.3	530,000	588,900
2-5/8	8	215.5	596,000	662,200
2-3/4	8-1/2	245.7	660,000	733,300
3	9	293.2	780,000	866,700
3-1/4	10	361.6	940,000	1,044,000
3-5/8	11	465.7	1,250,000	1,389,000
4	12	558.6	1,520,000	1,689,000
4-1/8	12-1/2	620	1,622,000	1,802,000
4-1/4	13	697	1,697,000	1,886,000
4-1/2	13-1/2	719	1,827,000	2,030,000
4-5/8	14	740	1,880,000	2,089,000
4-3/4	14-1/2	796	1,927,000	2,141,000
5	15	822	2,069,500	2,299,000
5-1/8	15-1/2	891	2,212,000	2,458,000
5-1/4	16	953	2,355,000	2,617,000
5-1/2	16-1/2	1015	2,497,500	2,775,000
5-5/8	17	1102	2,640,000	2,933,000
5-3/4	17-1/2	1181	2,782,500	3,092,000
6	18	1264	2,925,000	3,250,000
6-1/8	18-1/2	1335	3,068,000	3,409,000
6-1/4	19	1407	3,210,500	3,567,000
6-1/2	19-1/2	1495	3,353,000	3,726,000
6-5/8	20	1571	3,496,000	3,884,000
6-3/4	20-1/2	1663	3,638,500	4,043,000
7	21	1741	3,781,000	4,201,000
7-1/8	21-1/2	1809	3,963,500	4,404,000
7-1/4	22	1887	4,066,000	4,518,000
7-1/2	22-1/2	1969	4,209,000	4,677,000
7-5/8	23	2070	4,351,500	4,835,000
7-3/4	23-1/2	2154	4,494,000	4,993,000
8	24	2241	4,637,000	5,152,000
8-1/8	24-1/2	2348	4,779,000	5,310,000
8-1/4	25	2438	4,922,000	5,469,000

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
30	3-3/4	67.3	75	83
32	4	82.1	89	99
36	4-1/2	93.6	100	111
40	5	126.6	132	147
44	5-1/2	152.8	142	158
48	6	185.9	161	179
52	6-1/2	218.2	194	216
56	7	250.6	218	242
60	7-1/2	295.1	240	267
64	8	320.7	270	300
68	8-1/2	365.7	299	333
72	9	436.3	354	393
80	10	538.1	426	474
88	11	693.1	567	630
96	12	831.3	690	766
100	12-1/2	923	736	818
104	13	1037	770	856
108	13-1/2	1070	829	921
112	14	1101	853	948
116	14-1/2	1185	874	971
120	15	1223	939	1043
124	15-1/2	1326	1004	1115
128	16	1418	1069	1187
132	16-1/2	1511	1133	1259
136	17	1640	1198	1331
140	17-1/2	1758	1262	1403
144	18	1881	1327	1475
148	18-1/2	1987	1392	1547
152	19	2094	1457	1618
156	19-1/2	2225	1521	1691
160	20	2338	1586	1762
164	20-1/2	2475	1651	1834
168	21	2591	1716	1906
172	21-1/2	2692	1798	1998
176	22	2808	1845	2050
180	22-1/2	2930	1910	2122
184	23	3081	1974	2194
188	23-1/2	3206	2039	2265
192	24	3335	2104	2338
196	24-1/2	3494	2168	2409
200	25	3628	2233	2481

Technical Information

Specific gravity 1.18*
Melting point 284°F (140°C)
Critical temp. 150°F (65°C)
Coefficient of friction 0.12–0.15*
Elongation at break 3%–4%
Fiber water absorption <0.1%
UV resistance good
Wet abrasion superior
Dry abrasion superior

* value based on data supplied by the
fiber manufacturer for new, dry fiber

See what Customers Say

“What a great product! The BOB^® cord enabled us to design an indoor rowing machine with superior cyclic loading performance over a large number of pulleys. We’ve never had a BOB cord failure!”

Features / Benefits

High strength
Low stretch
Ultra low creep
Soft hand
Torque free
Easy splicing

Applications

Replacement for wire rope deep water lifting
Use on drum and traction winches
Active heave compensation systems
Heavy lift slings
High fatigue applications
Seismic tow cables
Tether applications

BOB® 12×12 Tech Sheet

Co-polymer 12 Plait

Back to top

Co-polymer Olefin 12 Plait provides high strength, light weight and excellent abrasion resistance in a single braid construction. Co‑polymer Olefin 12 Plait is easily spliced using a standard tuck splice and is 40% stronger than three strand or 8 plait polypropylene. Its torque free braided construction provides easy handling and prevents kinks and hockles.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
5/8	2	8.6	8,300	9,200
3/4	2-1/4	10.8	12,300	13,600
7/8	2-3/4	14	14,200	15,700
1	3	20.3	20,100	22,300
1-1/8	3-1/2	24.5	24,000	26,600
1-1/4	3-3/4	27	26,000	28,800
1-5/16	4	31.9	29,900	33,200
1-1/2	4-1/2	39.2	39,400	43,700
1-5/8	5	50.4	49,000	54,400
1-3/4	5-1/2	58.8	54,600	60,600
2	6	71.4	69,700	77,400
2-1/8	6-1/2	84	80,900	89,800
2-1/4	7	96.6	92,200	102,400
2-1/2	7-1/2	109	103,300	114,700
2-5/8	8	126	119,900	133,200
2-3/4	8-1/2	132	136,500	151,600
3	9	160	153,000	170,000
3-1/4	10	193	194,900	216,500
3-5/8	11	238	220,000	244,400
4	12	280	250,000	277,700

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
16	2	12.8	3.8	4.2
18	2-1/4	16.1	5.6	6.2
22	2-3/4	20.8	6.4	7.2
24	3	30.2	9.1	10.1
28	3-1/2	36.5	10.9	12.1
30	3-3/4	40.2	11.8	13.1
32	4	47.5	13.6	15.1
36	4-1/2	58.3	17.9	19.9
40	5	75	22.2	24.7
44	5-1/2	87.5	24.8	27.5
48	6	106.3	31.6	35.1
52	6-1/2	125	36.7	40.8
56	7	143.8	41.8	46.5
60	7-1/2	162.2	46.8	52.1
64	8	187.5	54.4	60.4
68	8-1/2	196.4	61.9	68.8
72	9	238.1	69.4	77.1
80	10	287.2	88.4	98.2
88	11	354.2	99.8	110.9
96	12	416.7	113.4	126.0

Technical Information

Specific gravity 0.94*
Melting point 279°F (137°C)
Critical temp. 140°F (60°C)
Coefficient of friction 0.16–0.018*
Elongation at break 20–25%
Fiber water absorption 0–1%
UV resistance excellent
Wet abrasion very good
Dry abrasion excellent

* value based on data supplied by the
fiber manufacturer for new, dry fiber

Features / Benefits

Floats
High strength
Excellent abrasion resistance
Torque free
Easy splicing
Excellent UV resistance

Applications

Floating mooring lines for barges/vessels
Floating winch lines
Subsea buoy moorings
Lashings

Co-polymer 12 Plait Tech Sheet

D/V Composite Double Braid

Back to top

D/V Composite is a double braided rope with the inner braided core made of Vectran® high modulus fiber and the outer sleeve of filament polyester. Available in white or black, the resultant finished braid has very low elongation and creep, high strength and the feel and handling of a polyester double braid.

D/V Composite double braid with a black polyester cover is very popular in the theatrical rigging industry and provides excellent service as a winch line.

Standard D/V Composite is delivered with a clear-color overlay marine finish and is available on special order with a splice-able polyurethane finish in black or other colors.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
3/16	9/16	0.002	3,600	4,000
1/4	3/4	0.025	4,900	5,400
5/16	15/16	0.040	9,200	10,200
3/8	1-1/8	0.077	13,400	14,900
1/2	1-1/2	0.100	16,200	18,000
3/4	2-1/4	0.148	27,400	30,100

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
5	9/16	0.0239	1.6	1.8
6	3/4	0.0373	2.2	2.5
8	15/16	0.0597	4.2	4.6
9	1-1/8	0.1149	6.1	6.8
12	1-1/2	0.1492	7.4	8.2
19	2-1/4	0.2208	13	14.0

Technical Information

Specific gravity 1.39*
Melting point 482°F (250°C)
Critical temp. 350°F (177°C)
Coefficient of friction 0.12–0.15*
Elongation at break 3%–4%
Fiber water absorption 0–1%
UV resistance excellent
Wet abrasion superior
Dry abrasion superior

* value based on data supplied by the
fiber manufacturer for new, dry fiber

D/V Composite Double Braid Elongation chart

Features / Benefits

High strength
Low stretch and creep
Soft hand
Torque-balanced construction
Easy to splice — Class II Core-Dependent Eye Splice

Applications

Theatrical winch and rigging lines
Utility winch lines
Utility pulling lines
Crane lines
Vessel mooring lines
Lifting slings

D/V Composite Double Braid Tech Sheet

D/Z Composite Double Braid

Back to top

D/Z Composite is a double braided rope with the inner core made of UHMWPE and the outer sleeve of polyester. D/Z Composite has very low elongation, high strength and the feel and handling of polyester double braid. It is identified with four external black markers.

D/Z Composite is delivered standard with an overlay marine finish. Special-order D/Z Composite is available with a spliceable polyurethane finish in clear or any of six colors.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
3/16	9/16	1.3	3,400	3,800
1/4	3/4	2.1	5,800	6,400
5/16	15/16	4.0	10,700	11,900
3/8	1-1/8	4.4	12,300	13,700
7/16	1-1/4	6.0	17,000	18,900
1/2	1-1/2	8.1	20,900	23,200
9/16	1-3/4	10.3	27,100	30,100
5/8	2	12.3	37,100	41,200
3/4	2-1/4	15.5	43,100	47,800
7/8	2-3/4	23.6	64,000	71,000
1	3	29.4	76,800	85,200
1-1/8	3-1/2	33.8	88,400	98,100
1-1/4	3-3/4	40.9	104,900	116,400
1-5/16	4	48.3	116,800	129,600
1-1/2	4-1/2	59.9	138,500	153,700
1-5/8	5	69.1	156,400	173,600
1-3/4	5-1/2	83.8	185,100	205,500
2	6	102.9	223,900	248,500

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
5	9/16	1.9	1.5	1.7
6	3/4	3.1	2.6	2.9
8	15/16	5.9	4.9	5.4
9	1-1/8	6.5	5.6	6.2
11	1-1/4	9.0	7.7	8.6
12	1-1/2	12.0	9.5	10.5
14	1-3/4	15.4	12.3	13.6
16	2	18.3	16.8	18.7
18	2-1/4	23.1	19.5	21.7
22	2-3/4	35.1	29.0	32.2
24	3	43.7	34.8	38.7
28	3-1/2	50.3	40.1	44.5
30	3-3/4	60.8	47.6	52.8
32	4	71.9	53.0	58.8
36	4-1/2	89.1	62.8	69.7
40	5	102.8	70.9	78.7
44	5-1/2	124.8	83.9	93.2
48	6	153.1	101.5	112.7

Technical Information

Specific gravity 1.13*
Melting point 284°F (140°C)
Critical temp. 150°F (65°C)
Coefficient of friction 0.12–0.15*
Elongation at break 3%–4%
Fiber water absorption 0–1%
UV resistance excellent
Wet abrasion excellent
Dry abrasion excellent

* value based on data supplied by the
fiber manufacturer for new, dry fiber

D/Z Composite Double Braid Elongation chart

Features / Benefits

High strength
Low stretch
Soft hand
Torque free
Easy splicing

Applications

Winch lines
Crane lines
Theatrical rigging
Utility pulling lines

D/Z Composite Double Braid Tech Sheet

DTM Composite Double Braid

Back to top

DTM Composite Double Braid ropes have very high strength, are firm with a round profile, and have extremely low stretch. These durable, torque free synthetic ropes are excellent for replacing steel wire rope in winch applications and are designed to withstand drum compression. DTM ropes can be used in multiple applications such as vessel mooring lines for Articulated Tug & Barges (ATB’s), Gilson winch lines used in commercial fishing, as well as helicopter long lines.

DTM Double Braid ropes are constructed with a braided Plasma® HMPE fiber core. This core is encased in a tightly braided jacket of a Polyester fiber that offers high abrasion and durability. The final construction of core and cover work in balance to provide excellent service life.

* DTM Composite ropes can also be designed with materials other than HMPE for jacketing depending on application. Linear density & external fiber properties will change depending on jacketing material but the strength will remain the same on a per size basis. Please contact Cortland for further information.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
1	3	28.1	97,000	107,700
1-1/8	3-1/2	36.2	120,000	133,200
1-1/4	3-3/4	44.1	145,000	161,000
1-5/16	4	48.6	159,000	176,500
1-3/8	4-1/8	52.8	175,000	194,300
1-1/2	4-1/2	65.1	202,000	224,300
1-5/8	5	75.5	228,000	253,100
1-3/4	5-1/2	85.4	250,000	277,500
1-7/8	5-5/8	96.5	297,000	329,700
2	6	109.9	332,000	368,600
2-1/8	6-1/2	123.2	360,000	399,600
2-1/4	7	142.0	408,000	452,900

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
24	3	41.9	44	48.8
28	3-1/2	53.8	54.4	60.4
30	3-3/4	65.6	65.8	73.0
32	4	72.4	72.1	80.0
34	4-1/8	78.5	79.4	88.1
36	4-1/2	96.9	91.6	101.7
40	5	112.3	103	114.3
44	5-1/2	127.1	113	125.4
46	5-5/8	143.5	135	149.9
48	6	163.6	151	167.6
52	6-1/2	183.4	163	180.9
56	7	211.3	185	205.4

Technical Information

Specific gravity 1.08*
Melting point 284°F (140°C)
Critical temp. 150°F (65°C)
Coefficient of friction 0.12–0.15*
Elongation at break 4%–5%
Fiber water absorption 0–1%
UV resistance excellent
Wet abrasion excellent
Dry abrasion excellent

* value based on data supplied by the
fiber manufacturer for new, dry fiber

DTM Composite Double Braid Elongation chart

Features / Benefits

High strength
Low stretch
Soft hand
Torque-free
Easy splicing

Applications

Vessel mooring lines
Winch lines
Tug mainline
Tug pendant
Recreational vehicle winch lines
Utility winch and pulling lines
Theatrical rigging

DTM Composite Double Braid

G/T Composite Double Braid

Back to top

G/T Composite ropes provide high strength, low stretch and superior abrasion resistance in a firm round jacketed construction. The ropes are constructed with a braided Plasma® core. This core is encased in a tightly braided jacket of a new generation HMPE fiber that offers the highest abrasion resistance and durability.* G/T Composite ropes can be used in mooring applications where a very high strength, firm and round torque free rope is desired.

G/T Composite can also be used in commercial fishing as wire rope replacement and helicopter longlines. These ropes are available with a polyurethane finish in clear or any of six colors, and are designed to withstand drum compression on mooring winches.

* GT Composite ropes can also be designed with materials other than HMPE for jacketing depending on application. Linear density & external fiber properties will change depending on jacketing material but the strength will remain the same on a per size basis. Please contact Cortland for further information.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
3/4	2-1/4	16.3	53,000	58,900
7/8	2-3/4	20.4	70,900	78,600
1	3	24.5	75,600	83,900
1-1/8	3-1/2	33.1	95,000	105,500
1-1/4	3-3/4	36.0	113,000	125,600
1-5/16	4	49.1	157,900	175,400
1-1/2	4-1/2	55.7	183,400	203,800
1-5/8	5	64.2	201,000	223,200
1-3/4	5-1/2	79.5	228,800	253,900
2	6	88.9	242,400	269,300

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
18	2-1/4	24.3	24	26.7
22	2-3/4	30.4	32.2	35.7
24	3	36.5	34.3	38.1
28	3-1/2	49.3	43.1	47.9
30	3-3/4	53.6	51.3	57.0
32	4	73.1	71.6	79.6
36	4-1/2	82.9	83.2	92.5
40	5	95.5	91.2	101.3
44	5-1/2	118.3	103.8	115.2
48	6	132.3	110.0	122.2

Technical Information

Specific gravity 0.98*
Melting point 284°F (140°C)
Critical temp. 150°F (65°C)
Coefficient of friction 0.12–0.15*
Elongation at break 3%–4%
Fiber water absorption 0–1%
UV resistance excellent
Wet abrasion superior
Dry abrasion superior

* value based on data supplied by the
fiber manufacturer for new, dry fiber

G/T Composite Double Braid Elongation chart

Features / Benefits

Highest strength
Lowest stretch
Low creep
Firm hand
Torque free

Applications

Commercial fishing lines
Helicopter longlines
Vessel mooring lines

G/T Composite Double Braid Tech Sheet

GTM Composite Double Braid

Back to top

GTM Composite Double Braid ropes have very high strength, are firm with a round profile, and have extremely low stretch. These durable, torque-free synthetic ropes are excellent for replacing steel wire rope in winch applications and are designed to withstand drum compression. GTM ropes can be used in multiple applications such as vessel mooring lines for Articulated Tug & Barges (ATB’s), Gilson winch lines used in commercial fishing, as well as helicopter long lines. GTM Mooring Lines 24mm to 44mm can be supplied with MEG4 certification.

GTM Double Braid ropes are constructed with a braided Plasma® HMPE fiber core. This core is encased in a tightly braided jacket of a new generation HMPE fiber that offers the highest abrasion and cut resistance durability.* The final construction of core and cover work in balance to provide excellent service life.

GTM braided rope standard color is orange, but is available with a polyurethane finish in clear or any of five additional colors; black, yellow, red, blue or green.

* GTM Composite ropes can also be designed with materials other than HMPE for jacketing depending on application. Linear density & external fiber properties will change depending on jacketing material but the strength will remain the same on a per size basis. Please contact Cortland for further information.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
1	3	25.3	97,000	107,700
1-1/8	3-1/2	30.9	120,000	133,200
1-1/4	3-3/4	38.7	145,000	161,000
1-5/16	4	43.2	159,000	176,500
1-3/8	4-1/8	47.1	175,000	194,300
1-1/2	4-1/2	58.0	202,000	224,300
1-5/8	5	65.3	228,000	253,100
1-3/4	5-1/2	75.3	250,000	277,500
1-7/8	5-5/8	87.3	297,000	329,700
2	6	98.5	332,000	368,600
2-1/8	6-1/2	110.5	360,000	399,600
2-1/4	7	128.0	408,000	452,900

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
24	3	37.7	44	48.8
28	3-1/2	46.0	54.4	60.4
30	3-3/4	57.6	65.8	73.0
32	4	64.3	72.1	80.0
34	4-1/8	70.1	79.4	88.1
36	4-1/2	86.3	91.6	101.7
40	5	97.2	103	114.3
44	5-1/2	112.1	113	125.4
46	5-5/8	129.8	135	149.9
48	6	146.5	151	167.6
52	6-1/2	164.4	163	180.9
56	7	190.5	185	205.4

Nominal Diameter (inches)	Size (circ. in)	Load Bearing Linear Density (lbs/100ft)	Linear Density (lbs/100ft)	Line Design Break Force (lbs)
1	3	16.5	25.3	97,000
1-1/8	3-1/2	20.4	30.9	120,000
1-1/4	3-3/4	24.3	38.7	145,000
1-5/16	4	27.4	43.2	159,000
1-3/8	4-1/8	30.7	47.1	175,000
1-1/2	4-1/2	36.9	58.0	202,000
1-5/8	5	42.9	65.3	228,000
1-3/4	5-1/2	51.2	75.3	250,000

Nominal Diameter (mm)	Size (circ. in)	Load Bearing Linear Density (kg/100m)	Linear Density (kg/100m)	Line Design Break Force (tonnes)
24	3	24.6	37.7	44.0
28	3-1/2	30.4	46.0	54.4
30	3-3/4	36.2	57.6	65.8
32	4	40.8	64.3	72.1
34	4-1/8	45.7	70.1	79.4
36	4-1/2	54.9	86.3	91.6
40	5	63.8	97.2	103.0
44	5-1/2	76.2	112.1	113.0

Technical Information

Specific gravity 0.98*
Melting point 284°F (140°C)
Critical temp. 150°F (65°C)
Coefficient of friction 0.12–0.15
Elongation at break 2.5–3.5%
Fiber water absorption 0–1%
UV resistance excellent
Wet abrasion superior
Dry abrasion superior
Material Type (core) HMPE
Material Type (jacket) HMPE
Load bearing const. 12-strand braid
Jacketed yes
Floating yes
Rotating no

* value based on data supplied by the
fiber manufacturer for new, dry fiber

GTM Composite Double Braid Elongation chart

Features / Benefits

Highest strength
Lowest stretch
Low creep
Firm hand
Torque free

Applications

Vessel mooring lines
Winch lines
Tug mainlines
Tug pendants
Recreational vehicle winch lines
Utility winch and pulling lines
Theatrical rigging

Certifications

ABS Type Approval
DNV Type Approval
MEG4 Certification

GTM Composite Double Braid Tech Sheet

GTM Composite Double Braid Tech Sheet MEG4

N/P Composite Double Braid

Back to top

N/P Composite is a double braided rope with the inner core made of multifilament polypropylene and the outer sleeve of nylon. N/P Composite combines the excellent sunlight and abrasion resistance of nylon with the flotation of polypropylene. It has a standard specific gravity of 1.01 and is available on special order with a specific gravity of 0.99.

N/P Composite Double Braid is delivered standard with an overlay marine finish.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
5/8	2	10.5	9,800	10,900
3/4	2-1/4	13.8	12,900	14,300
7/8	2-3/4	19.4	18,100	20,100
1	3	23.6	21,800	24,200
1-1/8	3-1/2	31.9	29,400	32,700
1-1/4	3-3/4	37.9	34,700	38,600
1-5/16	4	42.8	39,000	43,000
1-1/2	4-1/2	53.6	48,000	53,000
1-5/8	5	63.8	57,800	64,000
1-3/4	5-1/2	80.6	72,000	80,000
2	6	92.6	83,200	92,000
2-1/8	6-1/2	111	98,400	109,000
2-1/4	7	129	113,000	126,000
2-1/2	7-1/2	145	129,000	143,000
2-5/8	8	169	146,000	162,000
2-3/4	8-1/2	186	163,000	181,000
3	9	210	182,000	202,000
3-1/4	10	259	221,000	246,000
3-5/8	11	314	263,000	292,000
4	12	371	310,000	344,000
4-1/4	13	443	363,000	403,000

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
16	2	15.6	4.4	4.9
18	2-1/4	20.5	5.9	6.5
22	2-3/4	28.9	8.2	9.1
24	3	35.1	9.9	11.0
28	3-1/2	47.5	13.3	14.8
30	3-3/4	56.4	15.7	17.5
32	4	63.7	17.7	19.5
36	4-1/2	79.8	21.8	24.0
40	5	94.9	26.2	29.0
44	5-1/2	119.9	32.7	36.3
48	6	137.8	37.7	41.7
52	6-1/2	165.2	44.6	49.5
56	7	192	51.3	57.2
60	7-1/2	215.8	58.5	64.9
64	8	251	66.2	73.5
68	8-1/2	276.8	74.0	82.1
72	9	312.5	82.6	91.7
80	10	385.4	100.3	111.6
88	11	467.3	119.3	132.5
96	12	552.1	140.7	156.1
104	13	659.3	164.7	182.8

Technical Information

Specific gravity 1.01*
Melting point 284°F (140°C)
Critical temp. 200°F (93°C)
Coefficient of friction 0.12–0.15*
Elongation at break 30–35%
Fiber water absorption 3–4%
UV resistance good
Wet abrasion good
Dry abrasion good

* value based on data supplied by the
fiber manufacturer for new, dry fiber

N/P Composite Double Braid Elongation chart

Features / Benefits

Moderate stretch
High strength
Soft hand
Torque free
Floats in sea water

Applications

Vessel mooring lines (floating)
Buoy lines
Anchor lines

N/P Composite Double Braid Tech Sheet

Nylon 12 Plait

Back to top

Nylon 12 Plait provides high strength, high elongation and excellent abrasion resistance in a single braid construction. Nylon 12 Plait is easily spliced using a standard tuck splice and is 25% stronger than three strand or 8 plait nylon. Its torque free braided construction provides easy handling and prevents kinks and hockles.

Nylon 12 Plait is available standard with an overlay marine finish.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
5/8	2	11	13,900	15,400
3/4	2-1/4	15	17,900	19,900
7/8	2-3/4	22.6	26,200	29,100
1	3	26.3	30,100	33,400
1-1/8	3-1/2	33.8	39,400	43,800
1-1/4	3-3/4	39.5	45,400	50,400
1-5/16	4	45.1	51,200	56,900
1-1/2	4-1/2	56.4	64,800	72,000
1-5/8	5	67.7	76,300	84,800
1-3/4	5-1/2	79	92,100	102,300
2	6	95.9	106,500	118,300
2-1/8	6-1/2	113	128,000	142,200
2-1/4	7	135	152,000	168,900
2-1/2	7-1/2	152	170,000	188,900
2-5/8	8	169	189,000	210,000
2-3/4	8-1/2	192	214,000	237,800
3	9	222	245,000	272,200
3-1/4	10	271	288,000	320,000
3-5/8	11	321	338,000	375,600
4	12	389	418,000	464,400

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
16	2	16.4	6.3	7.0
18	2-1/4	22.3	8.1	9.0
22	2-3/4	33.6	11.9	13.2
24	3	39.1	13.7	15.2
28	3-1/2	50.3	17.9	19.9
30	3-3/4	58.8	20.6	22.9
32	4	67.1	23.2	25.8
36	4-1/2	83.9	29.4	32.7
40	5	100.8	34.6	38.5
44	5-1/2	117.6	41.8	46.4
48	6	142.7	48.3	53.7
52	6-1/2	168.2	58.1	64.5
56	7	200.9	69.0	76.6
60	7-1/2	226.2	77.1	85.7
64	8	251.5	85.8	95.3
68	8-1/2	285.7	97.1	107.9
72	9	330.4	111.2	123.5
80	10	403.3	130.7	145.2
88	11	477.7	153.4	170.4
96	12	578.9	189.7	210.7

Technical Information

Specific gravity 1.14*
Melting point 414°F (212°C)
Critical temp. 300°F (149°C)
Coefficient of friction 0.12–0.15*
Elongation at break 30–35%
Fiber water absorption 3–5%
UV resistance good
Wet abrasion excellent
Dry abrasion excellent

* value based on data supplied by the
fiber manufacturer for new, dry fiber

Features / Benefits

High stretch
High strength
Excellent shock absorption
Soft hand
Torque free
Easy splicing

Applications

Mooring lines
Anchor lines
KERR towing Lines
Tug hawsers and stretchers
Commercial fishing nets
Security barriers

Certifications

ABS Type Approval
DNV Type Approval

Nylon 12 Plait Tech Sheet

Nylon Double Braid

Back to top

Nylon Double Braid is the preferred choice for applications requiring high strength with excellent shock absorbing properties. Double Braid has good resistance to abrasion, sunlight and chemicals. Due to its high elongation, nylon is almost always used in applications involving shock loading such as anchor lines and mooring lines.

Nylon Double Braid is delivered standard with an overlay marine finish.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
1/4	3/4	1.7	1,900	2,100
5/16	1	2.6	2,900	3,200
3/8	1-1/8	3.7	4,200	4,700
7/16	1-1/4	5.1	5,700	6,300
1/2	1-1/2	6.6	7,400	8,200
9/16	1-3/4	9	10,200	11,300
ABS Type Approval and DNV Type Approval Type Approved Sizes
5/8	2	11.6	14,800	16,400
3/4	2-1/4	14.7	19,000	21,100
7/8	2-3/4	21.8	28,300	31,400
1	3	26	33,500	37,200
1-1/16	3-1/4	31	39,000	43,300
1-1/8	3-1/2	35.4	44,900	49,900
1-1/4	3-3/4	40.7	52,300	58,100
1-5/16	4	46.3	58,800	65,300
1-1/2	4-1/2	58.4	74,000	82,200
1-5/8	5	72.3	92,400	102,700
1-3/4	5-1/2	87.7	110,900	123,200
2	6	103.9	131,500	146,100
2-1/8	6-1/2	122	152,800	169,800
2-1/4	7	141.2	181,000	201,100
2-1/2	7-1/2	162.6	201,000	223,300
2-5/8	8	185.1	222,000	246,700
2-3/4	8-1/2	201.2	248,000	275,600
3	9	234.3	277,000	307,800
3-1/4	10	288.9	341,000	378,900
3-5/8	11	349.9	409,000	454,400
4	12	416.2	475,000	527,800
4-1/4	13	481.5	549,000	610,000

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
6	3/4	2.5	0.9	1.0
8	1	3.9	1.3	1.5
9	1-1/8	5.5	1.9	2.1
11	1-1/4	7.6	2.6	2.9
12	1-1/2	9.8	3.4	3.7
14	1-3/4	13.4	4.6	5.1
ABS Type Approval and DNV Type Approval Type Approved Sizes
16	2	17.2	6.7	7.4
18	2-1/4	21.9	8.6	9.6
22	2-3/4	32.4	12.8	14.2
24	3	38.7	15.2	16.9
26	3-1/4	46.1	17.7	19.6
28	3-1/2	52.7	20.4	22.6
30	3-3/4	60.6	23.7	26.4
32	4	68.9	26.7	29.6
36	4-1/2	86.9	33.6	37.3
40	5	107.6	41.9	46.6
44	5-1/2	130.5	50.3	55.9
48	6	154.6	59.7	66.3
52	6-1/2	181.6	69.3	77.0
56	7	210.1	82.1	91.2
60	7-1/2	242	91.2	101.3
64	8	275.5	100.7	111.9
68	8-1/2	299.4	112.5	125.0
72	9	348.7	125.7	139.7
80	10	430	154.7	171.9
88	11	520.7	185.6	206.2
96	12	619.4	215.5	239.5
104	13	716.6	249.1	276.8

Technical Information

Specific gravity 1.14*
Melting point 414°F (212°C)
Critical temp. 300°F (149°C)
Coefficient of friction 0.12–0.15*
Elongation at break 30–35%
Fiber water absorption 3–4%
UV resistance good
Wet abrasion excellent
Dry abrasion excellent

* value based on data supplied by the
fiber manufacturer for new, dry fiber

Features / Benefits

High stretch
High strength
Excellent shock absorption
Soft hand
Torque free
Meets MIL-DTL-24050

Applications

Anchor lines
Mooring lines
Shock absorbers
Pendants
Towlines
Towed array stretchers

Certifications

ABS Type Approval
DNV Type Approval
MIL-Spec

Nylon Double Braid Tech Sheet

Plasma® 12 Strand

Back to top

Plasma® 12-Strand is the highest strength synthetic rope available and is the culmination of 25 years of engineering expertise in the HMPE industry. Our dedication to providing customers with industry-leading synthetic line is and always has been the goal. Our continued innovation and unwavering desire are to provide the strongest and most reliable product available.

Plasma 12-Strand is delivered standard with a polyurethane finish and is easily spliced using a simple lockstitch type splice, 4-3-2 or 5-4-3 tuck splice. Its soft, torque free braided construction provides easy handling.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
0.04	0.12	0.05	270	300
0.05	0.15	0.07	390	430
0.06	0.18	0.1	475	525
0.07	0.21	0.14	750	830
0.1	0.3	0.27	1,400	1,550
1/8	3/8	0.54	2,800	3,100
3/16	9/16	1.12	5,500	6,100
1/4	3/4	1.6	8,000	8,890
5/16	15/16	2.5	11,700	13,000
3/8	1-1/8	3.7	17,500	19,400
ABS Type Approval and DNV Type Approval Type Approved Sizes
7/16	1-1/4	4.2	21,000	23,400
1/2	1-1/2	6.4	31,300	34,800
9/16	1-3/4	7.9	37,900	42,100
5/8	2	10.6	51,400	57,100
3/4	2-1/4	13.3	68,500	76,300
13/16	2-1/2	15.9	74,000	82,200
7/8	2-3/4	19.6	92,600	102,900
1	3	23.4	110,000	122,100
1-1/16	3-1/4	27.5	129,200	143,500
1-1/8	3-1/2	31.9	147,000	163,300
1-1/4	3-3/4	36.2	165,000	183,100
1-5/16	4	41.7	196,000	217,800
1-1/2	4-1/2	51.7	221,000	245,500

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
1	0.12	0.1	0.1	0.13
1.25	0.15	0.1	0.2	0.20
1.5	0.18	0.1	0.2	0.23
1.75	0.21	0.2	0.3	0.38
2.5	0.3	0.4	0.6	0.7
3	3/8	0.8	1.3	1.4
5	9/16	1.7	2.5	2.8
6	3/4	2.4	3.6	4.0
8	15/16	3.7	5.3	5.9
9	1-1/8	5.5	7.9	8.8
ABS Type Approval and DNV Type Approval Type Approved Sizes
11	1-1/4	6.3	9.5	10.6
12	1-1/2	9.5	14.2	15.8
14	1-3/4	11.8	17.2	19.1
16	2	15.8	23.3	25.9
18	2-1/4	19.8	31.1	34.6
20	2-1/2	23.7	33.6	37.2
22	2-3/4	29.2	42.0	46.7
24	3	34.8	49.9	55.4
26	3-1/4	40.9	58.6	65.1
28	3-1/2	47.5	66.7	74.1
30	3-3/4	53.9	74.9	83.1
32	4	62.1	88.9	98.8
36	4-1/2	76.9	100.3	111.3

Technical Information

Specific gravity 0.98*
Melting point 284°F (140°C)
Critical temp. 150°F (65°C)
Coefficient of friction 0.09–0.12*
Elongation at break 3%–4%
Fiber water absorption 0%
UV resistance good
Wet abrasion superior
Dry abrasion superior

* value based on data supplied by the
fiber manufacturer for new, dry fiber

Features / Benefits

Highest strength
Lowest stretch
Low creep
Soft hand
Torque-free
Easy splicing
Floats

Applications

Replacement for wire rope
Vessel mooring lines
Inland river barge lines
Lifting slings
Recreational vehicle winch lines
Utility winch and pulling lines
Theatrical rigging

Certifications

ABS Type Approval
DNV Type Approval

Plasma® 12 Strand Tech Sheet

Plasma® 12×12

Back to top

Plasma® 12×12 is a 12-strand braided rope in which each of the 12 strands is, in turn, a 12-strand rope, or braided primary strand. This construction addresses the most critical properties of the fibers to provide a very high strength translation efficiency for larger ropes. The design also provides superior snag resistance compared to other 12×12 designs which is important when dragging the rope. Plasma 12×12 is supplied with our standard polyurethane finish, although other coatings can be applied to suit specific applications.

Cortland’s Plasma® 12×12 ropes are the culmination of 25+ years of engineering expertise in the HMPE industry. Our dedication to providing customers with industry-leading synthetic line is and always has been the goal. Our continued innovation and unwavering desire are to provide the strongest and most reliable product available.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
ABS Type Approval and DNV Type Approval approved sizes — up to 4” diameter (96 mm)
1-5/8	5	66	291,000	323,300
1-3/4	5-1/2	78	314,000	348,900
2	6	91	355,000	392,450
2-1/8	6-1/2	109	428,000	475,600
2-1/4	7	122	481,000	534,400
2-1/2	7-1/2	148	530,000	588,900
2-5/8	8	167	596,000	662,200
2-3/4	8-1/2	187	660,000	733,300
3	9	214	780,000	866,700
3-1/8	9-1/2	235	850,000	944,400
3-1/4	10	261	940,000	1,045,400
3-1/2	10-1/2	298	1,108,000	1,231,000
3-5/8	11	324	1,250,000	1,388,900
3-3/4	11-1/2	343	1,317,000	1,463,000
4	12	394	1,520,000	1,689,000
4-1/8	12-1/2	457	1,622,000	1,802,000
4-1/4	13	514	1,697,000	1,886,000
4-1/2	13-1/2	530	1,827,000	2,030,000
4-5/8	14	546	1,880,000	2,089,000
4-3/4	14-1/2	587	1,927,000	2,141,000
5	15	606	2,069,500	2,299,000
5-1/8	15-1/2	657	2,212,000	2,458,000
5-1/4	16	703	2,355,000	2,617,000
5-1/2	16-1/2	749	2,497,500	2,775,000
5-5/8	17	813	2,640,000	2,933,000
5-3/4	17-1/2	871	2,782,500	3,092,000
6	18	932	2,925,000	3,250,000
6-1/8	18-1/2	985	3,068,000	3,409,000
6-1/4	19	1038	3,210,500	3,567,000
6-1/2	19-1/2	1103	3,353,000	3,726,000
6-5/8	20	1159	3,496,000	3,884,000
6-3/4	20-1/2	1227	3,638,500	4,043,000
7	21	1284	3,781,000	4,201,000
7-1/8	21-1/2	1334	3,963,500	4,404,000
7-1/4	22	1392	4,066,000	4,518,000
7-1/2	22-1/2	1452	4,209,000	4,677,000
7-5/8	23	1527	4,351,500	4,835,000
7-3/4	23-1/2	1589	4,494,000	4,993,000
8	24	1653	4,637,000	5,152,000
8-1/8	24-1/2	1732	4,779,000	5,310,000
8-1/4	25	1798	4,922,000	5,469,000

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
ABS Type Approval and DNV Type Approval approved sizes — up to 4” diameter (96 mm)
40	5	98	132	147
44	5-1/2	117	142	158
48	6	136	161	178
52	6-1/2	162	194	216
56	7	182	218	242
60	7-1/2	220	240	267
64	8	249	270	300
68	8-1/2	278	299	333
72	9	319	354	393
76	9-1/2	350	386	428
80	10	388	426	474
84	10-1/2	443	503	559
88	11	482	567	630
92	11-1/2	510	598	664
96	12	586	690	766
100	12-1/2	679	736	818
104	13	765	770	856
108	13-1/2	789	829	921
112	14	812	853	948
116	14-1/2	873	874	971
120	15	902	939	1043
124	15-1/2	978	1004	1115
128	16	1046	1069	1187
132	16-1/2	1114	1133	1259
136	17	1210	1198	1331
140	17-1/2	1296	1262	1403
144	18	1386	1327	1475
148	18-1/2	1465	1392	1547
152	19	1545	1457	1618
156	19-1/2	1642	1521	1691
160	20	1725	1586	1762
164	20-1/2	1827	1651	1834
168	21	1911	1716	1906
172	21-1/2	1986	1798	1998
176	22	2072	1845	2050
180	22-1/2	2161	1910	2122
184	23	2272	1974	2194
188	23-1/2	2365	2039	2265
192	24	2459	2104	2338
196	24-1/2	2578	2168	2409
200	25	2677	2233	2481

Technical Information

Specific gravity 0.98*
Melting point 284°F (140°C)
Critical temp. 150°F (65°C)
Coefficient of friction 0.09–0.12*
Elongation at break 3%–4%
Fiber water absorption 0%
UV resistance good
Wet abrasion superior
Dry abrasion superior

* value based on data supplied by the
fiber manufacturer for new, dry fiber

Features / Benefits

World’s strongest rope for its weight
Long lengths available
High flex fatigue and abrasion resistance
Easy to splice, inspect, and repair
Neutrally buoyant in water
Select sizes are ABS & DNV Type approved

Applications

Replacement for wire rope heavy lift slings
Tug vessel assist lines
Vessel mooring lines
Offshore working ropes
Lashings

Certifications

ABS Type Approval
DNV Type Approval

Plasma® 12×12 Tech Sheet

The Power and Promise of Purple

Plasma® HiCo 12 Strand

Back to top

Plasma® HiCo (high coefficient of friction) 12-Strand retains all of the features and benefits of standard Plasma ropes with the added characteristic of an increased coefficient of friction coating to allow for better gripping in applications such as H-Bitt or capstan rendering, and traction winch systems.

Cortland’s Plasma® 12-Strand ropes are the culmination of 25+ years of engineering expertise in the HMPE industry. Our dedication to providing customers with industry-leading synthetic line is and always has been the goal. Our continued innovation and unwavering desire are to provide the strongest and most reliable product available.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
0.04	0.12	0.05	270	300
0.05	0.15	0.07	390	430
0.06	0.18	0.1	475	525
0.07	0.21	0.14	750	830
0.1	0.3	0.27	1,400	1,550
1/8	3/8	0.54	2,800	3,100
3/16	9/16	1.12	5,500	6,100
1/4	3/4	1.6	8,000	8,890
5/16	15/16	2.5	11,700	13,000
3/8	1-1/8	3.7	17,500	19,400
ABS Type Approval and DNV Type Approval Type Approved Sizes
7/16	1-1/4	4.2	21,000	23,400
1/2	1-1/2	6.4	31,300	34,800
9/16	1-3/4	7.9	37,900	42,100
5/8	2	10.6	51,400	57,100
3/4	2-1/4	13.3	68,500	76,300
13/16	2-1/2	15.9	74,000	82,200
7/8	2-3/4	19.6	92,600	102,900
1	3	23.4	110,000	122,100
1-1/16	3-1/4	27.5	129,200	143,500
1-1/8	3-1/2	31.9	147,000	163,300
1-1/4	3-3/4	36.2	165,000	183,100
1-5/16	4	41.7	196,000	217,800
1-1/2	4-1/2	51.7	221,000	245,500

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
1	0.12	0.1	0.1	0.13
1.25	0.15	0.1	0.2	0.20
1.5	0.18	0.1	0.2	0.23
1.75	0.21	0.2	0.3	0.38
2.5	0.3	0.4	0.6	0.7
3	3/8	0.8	1.3	1.4
5	9/16	1.7	2.5	2.8
6	3/4	2.4	3.6	4.0
8	15/16	3.7	5.3	5.9
9	1-1/8	5.5	7.9	8.8
ABS Type Approval and DNV Type Approval Type Approved Sizes
11	1-1/4	6.3	9.5	10.6
12	1-1/2	9.5	14.2	15.8
14	1-3/4	11.8	17.2	19.1
16	2	15.8	23.3	25.9
18	2-1/4	19.8	31.1	34.6
20	2-1/2	23.7	33.6	37.2
22	2-3/4	29.2	42.0	46.7
24	3	34.8	49.9	55.4
26	3-1/4	40.9	58.6	65.1
28	3-1/2	47.5	66.7	74.1
30	3-3/4	53.9	74.9	83.1
32	4	62.1	88.9	98.8
36	4-1/2	76.9	100.3	111.3

Technical Information

Specific gravity 0.98*
Melting point 284°F (140°C)
Critical temp. 150°F (65°C)
Coefficient of friction 0.12–0.15*
Elongation at break 3%–4%
Fiber water absorption 0%
UV resistance good
Wet abrasion superior
Dry abrasion superior

* value based on data supplied by the
fiber manufacturer for new, dry fiber

Features / Benefits

Highest strength
Lowest stretch
Low creep
Soft hand
Torque-free
Easy splicing
Floats

Applications

Replacement for wire rope
Vessel mooring lines
Inland river barge lines
Recreational vehicle winch lines
Utility winch and pulling lines
Theatrical rigging
For use on H-bitts, capstans and traction
winch systems

Certifications

ABS Type Approval
DNV Type Approval

Plasma® HiCo 12 Strand Tech Sheet

Plasma® HiCo 12×12

Back to top

Plasma® HiCo 12×12 retains all the features and benefits of standard Plasma 12×12 ropes with the added characteristic of an increased coefficient of friction coating to allow for better gripping in applications such as H-Bitt or capstan rendering, and traction winch systems.

Plasma® HiCo 12×12 is a 12-Strand braided rope in which each of the 12 strands is, in turn, a 12-Strand rope, or braided primary strand. This construction addresses the most critical properties of the fibers to provide a very high strength translation efficiency for larger ropes. The design also provides superior snag resistance compared to other 12×12 designs which is important when dragging the rope.

Cortland’s Plasma® 12-Strand ropes are the culmination of 25+ years of engineering expertise in the HMPE industry. Our dedication to providing customers with industry-leading synthetic line is and always has been the goal. Our continued innovation and unwavering desire are to provide the strongest and most reliable product available.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
ABS Type Approval and DNV Type Approval approved sizes — up to 4" diameter (96 mm)
1-5/8	5	66	291,000	323,300
1-3/4	5-1/2	78	314,000	348,900
2	6	91	355,000	392,450
2-1/8	6-1/2	109	428,000	475,600
2-1/4	7	122	481,000	534,400
2-1/2	7-1/2	148	530,000	588,900
2-5/8	8	167	596,000	662,200
2-3/4	8-1/2	187	660,000	733,300
3	9	214	780,000	866,700
3-1/8	9-1/2	235	850,000	944,400
3-1/4	10	261	940,000	1,045,400
3-1/2	10-1/2	298	1,108,000	1,231,000
3-5/8	11	324	1,250,000	1,388,900
3-3/4	11-1/2	343	1,317,000	1,463,000
4	12	394	1,520,000	1,689,000
4-1/8	12-1/2	457	1,622,000	1,802,000
4-1/4	13	514	1,697,000	1,886,000
4-1/2	13-1/2	530	1,827,000	2,030,000
4-5/8	14	546	1,880,000	2,089,000
4-3/4	14-1/2	587	1,927,000	2,141,000
5	15	606	2,069,500	2,299,000
5-1/8	15-1/2	657	2,212,000	2,458,000
5-1/4	16	703	2,355,000	2,617,000
5-1/2	16-1/2	749	2,497,500	2,775,000
5-5/8	17	813	2,640,000	2,933,000
5-3/4	17-1/2	871	2,782,500	3,092,000
6	18	932	2,925,000	3,250,000
6-1/8	18-1/2	985	3,068,000	3,409,000
6-1/4	19	1038	3,210,500	3,567,000
6-1/2	19-1/2	1103	3,353,000	3,726,000
6-5/8	20	1159	3,496,000	3,884,000
6-3/4	20-1/2	1227	3,638,500	4,043,000
7	21	1284	3,781,000	4,201,000
7-1/8	21-1/2	1334	3,963,500	4,404,000
7-1/4	22	1392	4,066,000	4,518,000
7-1/2	22-1/2	1452	4,209,000	4,677,000
7-5/8	23	1527	4,351,500	4,835,000
7-3/4	23-1/2	1589	4,494,000	4,993,000
8	24	1653	4,637,000	5,152,000
8-1/8	24-1/2	1732	4,779,000	5,310,000
8-1/4	25	1798	4,922,000	5,469,000

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
ABS Type Approval and DNV Type Approval approved sizes — up to 4" diameter (96 mm)
40	5	98	132	147
44	5-1/2	117	142	158
48	6	136	161	178
52	6-1/2	162	194	216
56	7	182	218	242
60	7-1/2	220	240	267
64	8	249	270	300
68	8-1/2	278	299	333
72	9	319	354	393
76	9-1/2	350	386	428
80	10	388	426	474
84	10-1/2	443	503	559
88	11	482	567	630
92	11-1/2	510	598	664
96	12	586	690	766
100	12-1/2	679	736	818
104	13	765	770	856
108	13-1/2	789	829	921
112	14	812	853	948
116	14-1/2	873	874	971
120	15	902	939	1043
124	15-1/2	978	1004	1115
128	16	1046	1069	1187
132	16-1/2	1114	1133	1259
136	17	1210	1198	1331
140	17-1/2	1296	1262	1403
144	18	1386	1327	1475
148	18-1/2	1465	1392	1547
152	19	1545	1457	1618
156	19-1/2	1642	1521	1691
160	20	1725	1586	1762
164	20-1/2	1827	1651	1834
168	21	1911	1716	1906
172	21-1/2	1986	1798	1998
176	22	2072	1845	2050
180	22-1/2	2161	1910	2122
184	23	2272	1974	2194
188	23-1/2	2365	2039	2265
192	24	2459	2104	2338
196	24-1/2	2578	2168	2409
200	25	2677	2233	2481

Technical Information

Specific gravity 0.98*
Melting point 284°F (140°C)
Critical temp. 150°F (65°C)
Coefficient of friction 0.12–0.15*
Elongation at break 3%–4%
Fiber water absorption 0%
UV resistance good
Wet abrasion superior
Dry abrasion superior

* value based on data supplied by the
fiber manufacturer for new, dry fiber

Features / Benefits

World’s strongest rope for its weight
Long lengths available
High flex fatigue and abrasion resistance
Easy to splice, inspect, and repair
Neutrally buoyant in water
Select sizes are ABS & DNV Type approved

Applications

Replacement for wire rope
Tug vessel assist lines
Vessel mooring lines
Offshore working ropes
Lashings
For use on H-bitts, capstans and traction winch systems

Certifications

ABS
DNV Type Approval

Plasma® HiCo 12×12 Tech Sheet

Plasma® LoCo 12 Strand

Back to top

Plasma® LoCo 12-Strand retains all of the features and benefits of standard Plasma ropes with the added characteristic of a reduced coefficient of friction coating. The enhanced coating provides improved UV resistance and reduces internal heat build-up and abrasion associated with constant tension-tension fatigue, relative movement between the rope and fixed surfaces, and during cyclical bending.

Cortland’s proprietary LoCo coating process ensures superior adherence to the braided Plasma rope, providing an effective bond for increased service life and wear especially in wet environments. The LoCo design can be quickly spliced using Cortland’s recommended splicing techniques for low coefficient of friction ropes.

Cortland’s Plasma 12-Strand ropes are the culmination of 25+ years of engineering expertise in the HMPE industry. Our dedication to providing customers with industry-leading synthetic line is and always has been the goal. Our continued innovation and unwavering desire are to provide the strongest and most reliable product available.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
0.04	0.12	0.05	270	300
0.05	0.15	0.07	390	430
0.06	0.18	0.1	475	525
0.07	0.21	0.14	750	830
0.1	0.3	0.27	1,400	1,550
1/8	3/8	0.54	2,800	3,100
3/16	9/16	1.12	5,500	6,100
1/4	3/4	1.6	8,000	8,890
5/16	15/16	2.5	11,700	13,000
3/8	1-1/8	3.7	17,500	19,400
ABS Type Approval and DNV Type Approval Type Approved Sizes
7/16	1-1/4	4.2	21,000	23,400
1/2	1-1/2	6.4	31,300	34,800
9/16	1-3/4	7.9	37,900	42,100
5/8	2	10.6	51,400	57,100
3/4	2-1/4	13.3	68,500	76,300
13/16	2-1/2	15.9	74,000	82,200
7/8	2-3/4	19.6	92,600	102,900
1	3	23.4	110,000	122,100
1-1/16	3-1/4	27.5	129,200	143,500
1-1/8	3-1/2	31.9	147,000	163,300
1-1/4	3-3/4	36.2	165,000	183,100
1-5/16	4	41.7	196,000	217,800
1-1/2	4-1/2	51.7	221,000	245,500

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
1	0.12	0.1	0.1	0.13
1.25	0.15	0.1	0.2	0.20
1.5	0.18	0.1	0.2	0.23
1.75	0.21	0.2	0.3	0.38
2.5	0.3	0.4	0.6	0.7
3	3/8	0.8	1.3	1.4
5	9/16	1.7	2.5	2.8
6	3/4	2.4	3.6	4.0
8	15/16	3.7	5.3	5.9
9	1-1/8	5.5	7.9	8.8
ABS Type Approval and DNV Type Approval Type Approved Sizes
11	1-1/4	6.3	9.5	10.6
12	1-1/2	9.5	14.2	15.8
14	1-3/4	11.8	17.2	19.1
16	2	15.8	23.3	25.9
18	2-1/4	19.8	31.1	34.6
20	2-1/2	23.7	33.6	37.2
22	2-3/4	29.2	42.0	46.7
24	3	34.8	49.9	55.4
26	3-1/4	40.9	58.6	65.1
28	3-1/2	47.5	66.7	74.1
30	3-3/4	53.9	74.9	83.1
32	4	62.1	88.9	98.8
36	4-1/2	76.9	100.3	111.3

Technical Information

Specific gravity 0.98*
Melting point 284°F (140°C)
Critical temp. 150°F (65°C)
Elongation at break 3%–4%
Fiber water absorption 0%
UV resistance good
Wet abrasion superior
Dry abrasion superior

* value based on data supplied by the
fiber manufacturer for new, dry fiber

Features / Benefits

Highest strength
Lowest stretch
Lightweight
Soft hand
Torque free
Easy to splice and inspect
Floats
Long lengths available
Excellent UV resistance
High flex fatigue and abrasion resistance
Neutrally buoyant in water
Select sizes are ABS and DNV Type approved

Applications

Face and wing wires for push boats
Replacement for wire rope
Vessel mooring lines
Inland river barge lines
Recreational vehicle winch lines
Utility winch and pulling lines
Theatrical rigging

Certifications

ABS Type Approval
DNV Type Approval

Plasma® LoCo 12 Strand Tech Sheet

Plasma® LoCo 12×12

Back to top

Plasma® LoCo 12×12 retains all of the features & benefits of standard Plasma® ropes with the added characteristic of a reduced coefficient of friction coating. The enhanced coating provides improved UV resistance and reduces internal heat build-up and abrasion associated with constant tension-tension fatigue, relative movement between the rope and fixed surfaces, and during cyclical bending. Cortland’s proprietary LoCo coating process ensures superior adherence to the braided Plasma rope, providing an effective bond for increased service life and wear especially in wet environments.

Plasma® LoCo 12×12 is a 12-strand braided rope in which each of the 12 strands is, in turn, a 12-strand rope, or braided primary strand. This construction addresses the most critical properties of the fibers to provide very high strength translation efficiency for larger ropes. This design provides superior snag resistance compared to other 12-Strand designs which is important when dragging the rope.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
ABS Type Approval and DNV Type Approval approved sizes —up to 4" diameter (96 mm)
1-5/8	5	66	291,000	323,300
1-3/4	5-1/2	78	314,000	348,900
2	6	91	355,000	392,450
2-1/8	6-1/2	109	428,000	475,600
2-1/4	7	122	481,000	534,400
2-1/2	7-1/2	148	530,000	588,900
2-5/8	8	167	596,000	662,200
2-3/4	8-1/2	187	660,000	733,300
3	9	214	780,000	866,700
3-1/8	9-1/2	235	850,000	944,400
3-1/4	10	261	940,000	1,045,400
3-1/2	10-1/2	298	1,108,000	1,231,000
3-5/8	11	324	1,250,000	1,388,900
3-3/4	11-1/2	343	1,317,000	1,463,000
4	12	394	1,520,000	1,689,000
4-1/8	12-1/2	457	1,622,000	1,802,000
4-1/4	13	514	1,697,000	1,886,000
4-1/2	13-1/2	530	1,827,000	2,030,000
4-5/8	14	546	1,880,000	2,089,000
4-3/4	14-1/2	587	1,927,000	2,141,000
5	15	606	2,069,500	2,299,000
5-1/8	15-1/2	657	2,212,000	2,458,000
5-1/4	16	703	2,355,000	2,617,000
5-1/2	16-1/2	749	2,497,500	2,775,000
5-5/8	17	813	2,640,000	2,933,000
5-3/4	17-1/2	871	2,782,500	3,092,000
6	18	932	2,925,000	3,250,000
6-1/8	18-1/2	985	3,068,000	3,409,000
6-1/4	19	1038	3,210,500	3,567,000
6-1/2	19-1/2	1103	3,353,000	3,726,000
6-5/8	20	1159	3,496,000	3,884,000
6-3/4	20-1/2	1227	3,638,500	4,043,000
7	21	1284	3,781,000	4,201,000
7-1/8	21-1/2	1334	3,963,500	4,404,000
7-1/4	22	1392	4,066,000	4,518,000
7-1/2	22-1/2	1452	4,209,000	4,677,000
7-5/8	23	1527	4,351,500	4,835,000
7-3/4	23-1/2	1589	4,494,000	4,993,000
8	24	1653	4,637,000	5,152,000
8-1/8	24-1/2	1732	4,779,000	5,310,000
8-1/4	25	1798	4,922,000	5,469,000

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
ABS Type Approval and DNV Type Approval approved sizes —up to 4” diameter (96 mm)
40	5	98	132	147
44	5-1/2	117	142	158
48	6	136	161	178
52	6-1/2	162	194	216
56	7	182	218	242
60	7-1/2	220	240	267
64	8	249	270	300
68	8-1/2	278	299	333
72	9	319	354	393
76	9-1/2	350	386	428
80	10	388	426	474
84	10-1/2	443	503	559
88	11	482	567	630
92	11-1/2	510	598	664
96	12	586	690	766
100	12-1/2	679	736	818
104	13	765	770	856
108	13-1/2	789	829	921
112	14	812	853	948
116	14-1/2	873	874	971
120	15	902	939	1043
124	15-1/2	978	1004	1115
128	16	1046	1069	1187
132	16-1/2	1114	1133	1259
136	17	1210	1198	1331
140	17-1/2	1296	1262	1403
144	18	1386	1327	1475
148	18-1/2	1465	1392	1547
152	19	1545	1457	1618
156	19-1/2	1642	1521	1691
160	20	1725	1586	1762
164	20-1/2	1827	1651	1834
168	21	1911	1716	1906
172	21-1/2	1986	1798	1998
176	22	2072	1845	2050
180	22-1/2	2161	1910	2122
184	23	2272	1974	2194
188	23-1/2	2365	2039	2265
192	24	2459	2104	2338
196	24-1/2	2578	2168	2409
200	25	2677	2233	2481

Technical Information

Specific gravity 0.98*
Melting point 284°F (140°C)
Critical temp. 150°F (65°C)
Elongation at break 3%–4%
Fiber water absorption 0%
UV resistance good
Wet abrasion superior
Dry abrasion superior

* value based on data supplied by the
fiber manufacturer for new, dry fiber

Features / Benefits

Long lengths available
High flex fatigue and abrasion resistance
Easy to splice, inspect, and repair
Neutrally buoyant in water
Select sizes are ABS & DNV Type approved

Applications

Tractor tug winch mainlines/pendants
Replacement for wire rope
Offshore working ropes

Certifications

ABS Type Approval
DNV Type Approval

Plasma® LoCo 12×12 Tech Sheet

Polyester 12 Plait

Back to top

Polyester 12 Plait provides high strength, low stretch and excellent abrasion resistance in a unique single braid construction. Polyester 12 Plait is easily spliced using a standard tuck splice and is 30% stronger than three strand or 8 plait polyester. Its torque free braided construction provides easy handling and prevents kinks and hockles.

Polyester 12 Plait is delivered standard with an overlay marine finish and is available on special order with a spliceable polyurethane finish in clear or any of six colors.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
5/8	2	14.1	12,100	13,400
3/4	2-1/4	18.7	15,800	17,600
7/8	2-3/4	28.2	24,200	26,900
1	3	35.1	27,500	30,600
1-1/8	3-1/2	41.2	35,500	39,400
1-1/4	3-3/4	45.9	42,100	46,800
1-5/16	4	55	48,200	53,600
1-1/2	4-1/2	71.1	59,600	66,200
1-5/8	5	84.8	72,200	80,200
1-3/4	5-1/2	98.6	84,400	93,800
2	6	120	101,000	112,200
2-1/8	6-1/2	141	119,000	132,200
2-1/4	7	160	137,000	152,200
2-1/2	7-1/2	189	163,000	181,100
2-5/8	8	208	179,000	198,900
2-3/4	8-1/2	234	202,000	224,400
3	9	273	233,000	258,900
3-1/4	10	338	282,000	313,300
3-1/2	10.5	394	322,000	357,800
3-5/8	11	402	340,000	377,800
4	12	486	409,000	454,400
4-1/8	12.5	547	444,000	493,300
4-1/4	13	582	467,000	518,900

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
16	2	21	5.5	6.1
18	2-1/4	27.8	7.2	8.0
22	2-3/4	42	11.0	12.2
24	3	52.2	12.5	13.9
28	3-1/2	61.3	16.1	17.9
30	3-3/4	68.3	19.1	21.2
32	4	81.9	21.9	24.3
36	4-1/2	105.8	27.0	30.0
40	5	126.2	32.8	36.4
44	5-1/2	147.7	38.3	42.6
48	6	178.6	45.8	50.9
52	6-1/2	209.8	54.0	60.0
56	7	238.1	62.2	69.1
60	7-1/2	281.3	74.0	82.2
64	8	309.5	81.2	90.2
68	8-1/2	348.2	91.7	101.8
72	9	406.3	105.7	117.5
80	10	503	127.9	142.2
84	10.5	587	146	162
88	11	598.3	154.3	171.4
96	12	723.3	185.6	206.2
104	12.5	815	201	224
108	13	867	212	235

Technical Information

Specific gravity 1.38*
Melting point 482°F (250°C)
Critical temp. 350°F (177°C)
Coefficient of friction 0.12–0.15*
Elongation at break 15–20%
Fiber water absorption 0–1%
UV resistance excellent
Wet abrasion excellent
Dry abrasion excellent

* value based on data supplied by the
fiber manufacturer for new, dry fiber

Features / Benefits

Low stretch
High strength
Soft hand
Torque free
Easy splicing
Meets MIL-R-24750

Applications

Tug working lines
Mooring pendants
Shock lines

Certifications

ABS Type Approval
DNV Type Approval
MIL-Spec

Polyester 12 Plait Tech Sheet

Polyester 12 Strand

Back to top

Polyester 12 Strand has the lowest stretch and highest strength of all polyester constructions. Its torque free braided construction provides easy handling and prevents kinks and hockles. Polyester 12 Strand is delivered standard with a clear polyurethane finish and is easily spliced using a simple lockstitch type splice. The largest market for this rope, transmission stringing lines, typically consists of sets of ropes in four different colors.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
3/8	1-1/8	4.2	6,100	6,800
7/16	1-1/4	6.3	9,000	10,000
1/2	1-1/2	8.5	10,900	12,100
9/16	1-3/4	10.1	13,600	15,100
5/8	2	13.1	17,500	19,400
3/4	2-1/4	17.2	21,900	24,300
7/8	2-3/4	25.8	28,500	31,700
1	3	34.5	41,000	45,600
1-1/8	3-1/2	40	47,500	52,800
1-1/4	3-3/4	44.5	56,700	63,000
1-5/16	4	53.1	59,800	66,400
1-1/2	4-1/2	69	69,800	77,600
1-5/8	5	82.5	83,000	92,200
1-3/4	5-1/2	96.1	98,000	108,900
2	6	117	120,000	133,300

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
9	1-1/8	6.3	2.8	3.1
11	1-1/4	9.4	4.1	4.5
12	1-1/2	12.6	4.9	5.5
14	1-3/4	15	6.2	6.9
16	2	19.5	7.9	8.8
18	2-1/4	25.6	9.9	11.0
22	2-3/4	38.4	12.9	14.4
24	3	51.3	18.6	20.7
28	3-1/2	59.5	21.6	24.0
30	3-3/4	66.2	25.7	28.6
32	4	79	27.1	30.1
36	4-1/2	102.7	31.7	35.2
40	5	122.8	37.7	41.8
44	5-1/2	143	44.5	49.4
48	6	174.1	54.4	60.5

Technical Information

Specific gravity 1.38*
Melting point 482°F (250°C)
Critical temp. 350°F (177°C)
Coefficient of friction 0.12–0.15*
Elongation at break 15–20%
Fiber water absorption 0–1%
UV resistance excellent
Wet abrasion excellent
Dry abrasion excellent

* value based on data supplied by the
fiber manufacturer for new, dry fiber

Features / Benefits

Low stretch
High strength
Soft hand
Torque free
Easy splicing

Applications

Transmission stringing lines
Underground pulling lines
Lifting slings
Adjustable transformer slings

Polyester 12 Strand Tech Sheet

Polyester Double Braid

Back to top

Polyester Double Braid provides an excellent combination of high strength, low stretch, excellent weathering and easy handling. Of all the popular fibers polyester has the best weathering characteristics and the best wet abrasion resistance. Polyester Double Braid is identified with one external black marker.

Polyester Double Braid is delivered standard with an overlay marine finish and is available on special order with a spliceable polyurethane finish in clear or any of six colors.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
1/4	3/4	2.4	2,400	2,700
5/16	1	3.6	3,600	4,000
3/8	1-1/8	4.8	4,800	5,300
7/16	1-1/4	6.3	6,300	7,000
1/2	1-1/2	8.6	8,400	9,300
9/16	1-3/4	11.1	10,750	11,900
ABS Type Approval and DNV Type Approval Type Approved Sizes
5/8	2	13.1	12,300	13,700
3/4	2-1/4	18.8	17,400	19,300
7/8	2-3/4	25.6	24,000	26,700
1	3	33.5	31,200	34,700
1-1/8	3-1/2	42.4	39,500	43,900
1-1/4	3-3/4	52.3	48,100	53,400
1-5/16	4	57.8	53,100	59,000
1-1/2	4-1/2	75.4	64,300	71,400
1-5/8	5	88.2	77,800	86,400
1-3/4	5-1/2	103.0	89,200	99,100
2	6	134.0	110,000	122,200
2-1/8	6-1/2	151.0	124,000	137,800
2-1/4	7	169.0	141,000	156,700
2-1/2	7-1/2	209.0	170,000	188,900
2-5/8	8	231.0	186,000	206,700
2-3/4	8-1/2	265.0	206,000	228,900
3	9	301.0	237,000	263,300
3-1/4	10	354.0	292,000	324,400
3-5/8	11	440.0	348,000	386,700
4	12	536.0	401,000	445,600
4-1/4	13	605.0	454,000	504,400

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
6	3/4	3.6	1.1	1.2
8	1	5.4	1.6	1.8
9	1-1/8	7.1	2.2	2.4
11	1-1/4	9.4	2.9	3.2
12	1-1/2	12.8	3.8	4.2
14	1-3/4	16.5	4.9	5.4
ABS Type Approval and DNV Type Approval Type Approved Sizes
16	2	19.5	5.6	6.2
18	2-1/4	28.0	7.9	8.8
22	2-3/4	38.1	10.9	12.1
24	3	49.9	14.2	15.7
28	3-1/2	63.1	17.9	19.9
30	3-3/4	77.8	21.8	24.2
32	4	86.0	24.1	26.8
36	4-1/2	112.2	29.2	32.4
40	5	131.3	35.3	39.2
44	5-1/2	153.3	40.5	45
48	6	199.4	50	55
52	6-1/2	224.7	56	63
56	7	251.5	64	71
60	7-1/2	311.0	77	86
64	8	343.8	84	94
68	8-1/2	394.4	94	104
72	9	447.9	108	120
80	10	526.8	133	147
88	11	654.8	158	176
96	12	797.7	182	202
104	13	900.4	206	229

Technical Information

Specific gravity 1.38*
Melting point 482°F (250°C)
Critical temp. 350°F (177°C)
Coefficient of friction 0.12–0.15*
Elongation at break 15–20%
Fiber water absorption 0–1%
UV resistance excellent
Wet abrasion excellent
Dry abrasion excellent

* value based on data supplied by the
fiber manufacturer for new, dry fiber

Features / Benefits

Low stretch
High strength
Soft hand
Torque free
Excellent wet strength
Meets MIL-DTL-24677

Applications

Winch lines
Utility pulling lines
Towing lines
Offshore anchor and lifting lines
Arborist bull ropes
Theatrical rigging lines

Certifications

ABS Type Approval
DNV Type Approval
MIL-Spec

Polyester Double Braid Tech Sheet

PSR 2000 12 Strand

Back to top

PSR 2000 12 Strand offers a high strength to weight ratio and is an excellent replacement for heavier polyester lines. Its unique blend of polyester and olefin co-polymer in each strand makes for a highly efficient construction. PSR 2000 12 Strand is torque balanced, has excellent wear resistance, and is one of the quickest ropes to splice.

PSR 2000 12 Strand is an excellent choice as mooring, tie-up and pendant lines, tug assist lines and for general purpose heavy marine applications.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
1	3	30	25,000	27,800
1-1/8	3-1/2	35	32,000	35,600
1-1/4	3-3/4	39	38,000	42,200
1-5/16	4	47	43,000	47,800
1-1/2	4-1/2	60	54,000	60,000
1-5/8	5	72	65,000	72,200
1-3/4	5-1/2	84	75,000	83,300
2	6	102	92,000	102,200
2-1/8	6-1/2	120	108,000	120,000
2-1/4	7	136	125,000	138,900
2-1/2	7-1/2	160	147,000	163,300
2-5/8	8	176	158,000	175,600
2-3/4	8-1/2	199	184,000	204,400
3	9	231	207,000	230,000
3-1/4	10	286	252,000	280,000
3-5/8	11	342	306,000	340,000
4	12	413	369,000	410,000

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
24	3	44.6	11.3	12.6
28	3-1/2	52.1	14.5	16.2
30	3-3/4	58	17.2	19.1
32	4	69.9	19.5	21.7
36	4-1/2	89.3	24.5	27.2
40	5	107.2	29.5	32.8
44	5-1/2	125	34.0	37.8
48	6	151.8	41.7	46.4
52	6-1/2	178.6	49.0	54.4
56	7	202.4	56.7	63.0
60	7-1/2	238.1	66.7	74.1
64	8	261.9	71.7	79.7
68	8-1/2	296.2	83.5	92.7
72	9	343.8	93.9	104.4
80	10	425.6	114.3	127.0
88	11	509	138.8	154.3
96	12	614.6	167.4	186.0

Technical Information

Specific gravity 1.22*
Melting point 279°F (137°C)
Critical temp. 140°F (60°C)
Coefficient of friction 0.12–0.15*
Elongation at break 15–20%
Fiber water absorption 0–1%
UV resistance excellent
Wet abrasion excellent
Dry abrasion excellent

* value based on data supplied by the
fiber manufacturer for new, dry fiber

Features / Benefits

Low stretch
High strength
Torque free
Easy splicing
Soft hand
Excellent abrasion resistance
Lighter than 100% polyester ropes

Applications

Vessel mooring lines
Tug assist lines
General purpose heavy marine applications

PSR 2000 12 Strand Tech Sheet

Reduced Recoil Plasma®

Back to top

Cortland’s Plasma® 12-Strand and 12×12 ropes are the culmination of 25 years of engineering expertise in the HMPE industry. Our dedication to providing customers with industry-leading synthetic line is and always has been the goal. Our continued innovation and unwavering desire are to provide the strongest and most reliable product available.

Cortland’s Reduced Recoil Plasma is manufactured utilizing a combination of Plasma HMPE and Polyester fiber in either a conventional 12-Strand, or a 12×12 Strand, construction and is tested in accordance with the requirements of the latest version of Cordage Institute CI 1502, Test Methods for Reduced Recoil Risk Rope. In addition it meets or exceeds the requirements of the latest draft of CGSB‑40.20-2008, Standard for Reduced Recoil Rope.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
12 Strand
5/8	2	12	34,400	38,200
3/4	2-1/4	15.1	45,900	50,900
13/16	2-1/2	18.1	49,600	55,100
7/8	2-3/4	22.3	62,000	68,800
1	3	26.6	73,700	81,800
1-1/8	3-1/2	36.2	98,400	109,200
1-1/4	3-3/4	41.1	110,500	122,700
1-5/16	4	47.4	131,300	145,700
12x12 Strand
1-1/2	4-1/2	58.7	148,000	164,300
1-5/8	5	74.6	195,000	216,500
1-3/4	5-1/2	89.1	210,300	233,400
2	6	103.8	237,800	264,000
2-1/8	6-1/2	123.8	286,700	318,200
2-1/4	7	138.6	322,200	357,600
2-1/2	7-1/2	168.1	355,100	394,200
2-5/8	8	189.7	399,300	443,200
2-3/4	8-1/2	212.4	442,200	490,800
3	9	243.1	522,600	580,100

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
12 Strand
16	2	15.8	15.6	17.3
18	2-1/4	19.8	20.8	23.1
20	2-1/2	26.9	22.5	25.0
22	2-3/4	33.2	28.1	31.2
24	3	39.5	33.4	37.1
28	3-1/2	54.0	44.6	49.5
30	3-3/4	61.2	50.1	55.6
32	4	70.6	59.5	66.0
12x12 Strand
36	4-1/2	87.4	67.1	74.5
40	5	111.1	88.4	98.1
44	5-1/2	132.6	95.4	106.0
48	6	154.5	108.0	120.0
52	6-1/2	184.3	130.0	144.0
56	7	206.3	146.0	162.0
60	7-1/2	250.2	161.0	179.0
64	8	282.3	181.0	201.0
68	8-1/2	316.2	201.0	223.0
72	9	361.8	237.0	263.0

Technical Information

Specific gravity 1.11*
Melting point 284°F (140°C)
Critical temp. 150°F (65°C)
Coefficient of friction 0.09–0.15*
Elongation at break 3–4%
Fiber water absorption <1%
UV resistance very good
Wet abrasion excellent
Dry abrasion excellent

* value based on data supplied by the
fiber manufacturer for new, dry fiber

Features / Benefits

Lightweight
Very low stretch
Very high strength
Soft on hands
Torque free
Easy to splice
Easy to inspect
Repairable (12×12)

Applications

Mooring line

Reduced Recoil Plasma® Tech Sheet

Spun Polyester Double Braid

Back to top

Spun Polyester is a double braided rope with the inner core made of polyester continuous filament and the outer sleeve of DuPont type 77 Dacron® to give a soft easy grip surface yet the strength of continuous filament polyester. Spun polyester is easily spliced and has excellent weathering characteristics and abrasion resistance.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
5/8	2	13	10,200	11,300
3/4	2-1/4	16.2	12,700	14,100
7/8	2-3/4	24.3	17,700	19,700
1	3	29.3	20,300	22,600
1-1/8	3-1/2	40	27,000	30,000
1-1/4	3-3/4	45.8	30,200	33,600
1-5/16	4	52.4	33,900	37,700
1-1/2	4-1/2	65	45,300	50,300
1-5/8	5	81.5	50,400	56,000

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
16	2	19.3	4.6	5.1
18	2-1/4	24.1	5.8	6.4
22	2-3/4	36.2	8.0	8.9
24	3	43.6	9.2	10.3
28	3-1/2	59.5	12.3	13.6
30	3-3/4	68.2	13.7	15.2
32	4	78	15.4	17.1
36	4-1/2	96.7	20.6	22.8
40	5	121.3	22.9	25.4

Technical Information

Specific gravity 1.38*
Melting point 482°F (250°C)
Critical temp. 350°F (177°C)
Coefficient of friction 0.12–0.15*
Elongation at break 15–20%
Fibre water absorption 0–1%
UV resistance excellent
Wet abrasion excellent
Dry abrasion excellent

* value based on data supplied by the
fiber manufacturer for new, dry fiber

Spun Polyester Double Braid Elongation chart

Features / Benefits

Low stretch
High strength
Very soft hand
Torque free
Excellent wet strength
Meets MIL-R-24536

Applications

Military applications per MIL-R-24536

Certifications

MIL-Spec

Spun Polyester Double Braid Tech Sheet

Technora® 12 Strand

Back to top

Technora® 12 Strand is made with high strength light weight Technora fiber. The 12 strand braided construction is torque free, and easy to splice. Technora 12 is extremely heat and flex fatigue resistant. It has no creep making it a good choice for applications with high static loads including mooring cables, hoisting cables, and tower guy wires. Technora 12 Strand is delivered standard with a black polyurethane coating.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
1/8	3/8	0.6	2,520	2,800
3/16	9/16	1.3	5,040	5,600
1/4	3/4	1.9	7,335	8,200
5/16	15/16	3.2	11,700	13,000
3/8	1-1/8	4.3	16,200	18,000
7/16	1-1/4	6.7	21,000	23,300
1/2	1-1/2	8.3	29,700	33,000
5/8	1-3/4	13.5	45,000	50,000
3/4	2-1/4	19.3	59,000	65,600
7/8	2-3/4	25.3	76,000	84,400
1	3	31.1	92,000	102,200
1-1/8	3-1/2	42.3	123,000	136,700
1-1/4	3-3/4	48.1	139,400	154,900

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
3	3/8	0.9	1.1	1.3
5	9/16	1.9	2.3	2.5
6	3/4	2.8	3.3	3.7
8	15/16	4.8	5.3	5.9
9	1-1/8	6.4	7.4	8.2
11	1-1/4	10	9.5	10.6
12	1-1/2	12.4	13.5	15.0
16	1-3/4	20.1	20.4	22.7
18	2-1/4	28.7	26.8	29.8
22	2-3/4	37.7	34.5	38.3
24	3	46.3	41.7	46.4
28	3-1/2	63	55.8	62.0
30	3-3/4	71.6	63.2	70.3

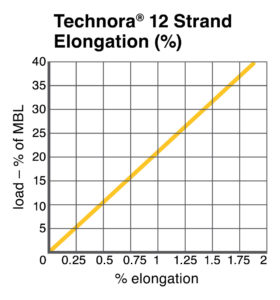

Technical Information

Specific gravity 1.39*
Thermal decomposition 932°F (500°C)
Elongation at break 4–5%
Fiber water absorption 0%
UV resistance moderate
Abrasion resistance good

* value based on data supplied by the
fiber manufacturer for new, dry fiber

Features / Benefits

Very high heat resistance
Zero creep
Very low stretch
Very high strength
Soft hand
Torque free
Easy splicing

Applications

Theatrical rigging lines
Utility winch and pulling lines
Recreational vehicle winch lines
Tower guy wires

Technora® 12 Strand Tech Sheet

Toro™ 12 Strand

Back to top

Toro™ is a 12 Strand braided rope with high strength-to-weight ratio and, size-for-size, offers the same strength as steel. Toro 12 strand is manufactured from High Modulus Polyethylene (HMPE) and is an excellent wire rope replacement with low stretch, superior flex fatigue and wear resistance.

Toro 12 strand is delivered standard with a polyurethane finish and is easily spliced using a simple lockstitch type splice, 4-3-2 or 5-4-3 tuck splice. Its soft, torque free braided construction provides easy handling and inspection.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
1/8	3/8	0.69	2,800	3,110
3/16	9/16	1.20	5,500	6,110
1/4	3/4	1.7	8,000	8,880
5/16	15/16	2.6	11,700	12,990
3/8	1-1/8	3.6	17,500	19,440
7/16	1-1/4	4.8	22,000	24,400
1/2	1-1/2	6.1	30,500	33,800
9/16	1-3/4	7.6	36,500	40,500
5/8	2	9.4	47,800	53,100
3/4	2-1/4	13.5	61,800	68,600
13/16	2-1/2	15.8	74,000	82,200
7/8	2-3/4	18.5	84,300	93,600
1	3	23.7	105,000	116,600
1-1/16	3-1/4	26.9	121,600	135,000
1-1/8	3-1/2	30.3	137,000	152,200
1-1/4	3-3/4	37.2	157,000	174,400
1-5/16	4	41.1	176,400	195,900
1-1/2	4-1/2	53.8	215,000	238,800

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
3	3/8	1.03	1.27	1.41
5	9/16	1.79	2.49	2.77
6	3/4	2.6	3.63	4.0
8	15/16	3.8	5.31	5.9
9	1-1/8	5.3	7.94	8.8
11	1-1/4	7.1	10.0	11.1
12	1-1/2	9.1	13.8	15.4
14	1-3/4	11.3	16.6	18.4
16	2	14.1	21.7	24.1
18	2-1/4	20.1	28.0	31.1
20	2-1/2	23.5	33.6	37.3
22	2-3/4	27.5	38.2	42.5
24	3	35.3	47.6	52.9
26	3-1/4	40.0	55.1	61.3
28	3-1/2	45.1	62.1	69.0
30	3-3/4	55.4	71.2	79.1
32	4	61.2	80.0	88.9
36	4-1/2	80.1	97.5	108.3

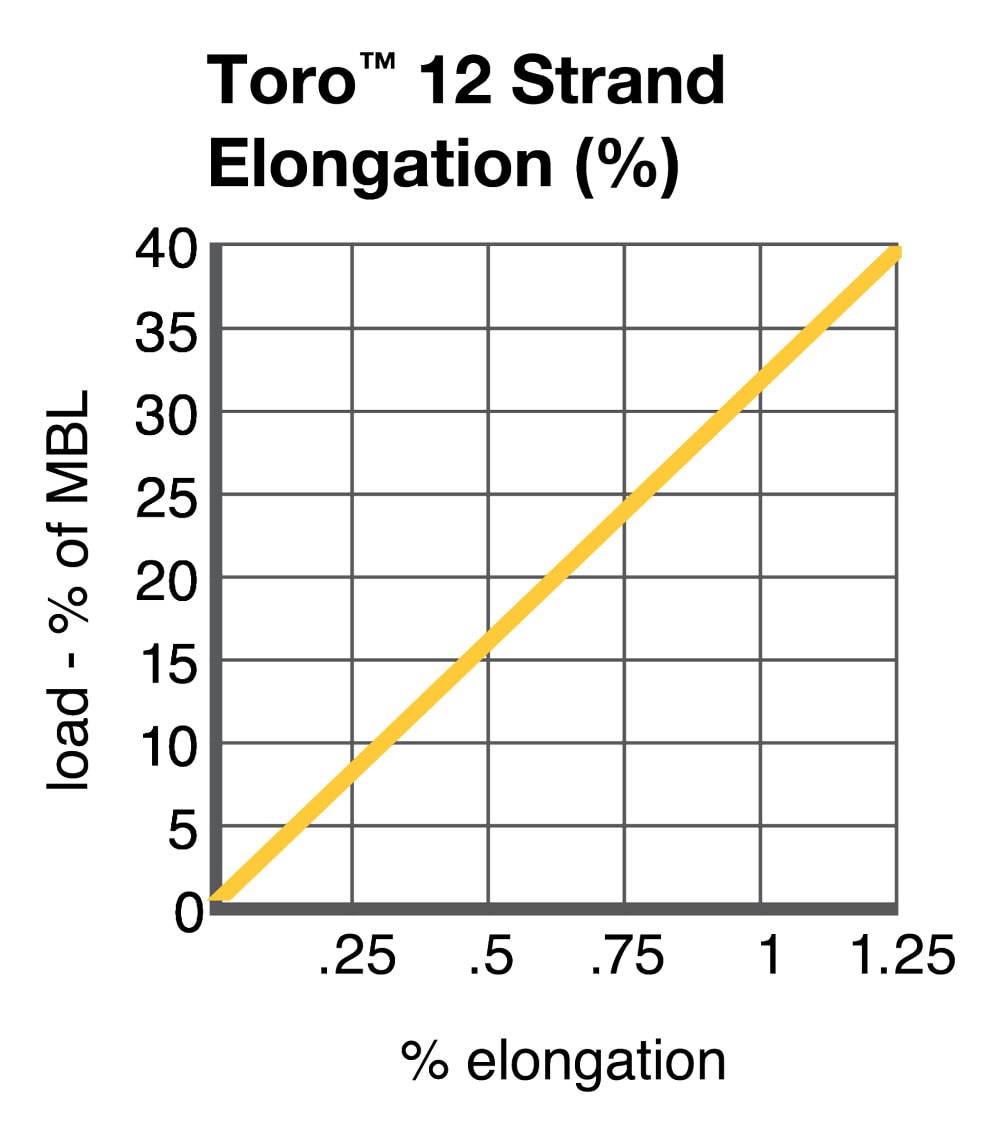

Technical Information

Specific gravity 0.98*
Melting point 284°F (140°C)
Critical temp. 150°F (65°C)
Coefficient of friction 0.09–0.12*
Elongation at break 3%–4%
Fiber water absorption 0%
UV resistance good
Wet abrasion superior
Dry abrasion superior

* value based on data supplied by the
fiber manufacturer for new, dry fiber

Features / Benefits

High strength
Lowest stretch
Low creep
Soft hand
Torque-free
Easy splicing
Floats

Applications

Replacement for wire rope
Vessel mooring lines
Tug vessel assist lines
Offshore working ropes
Inland river barge lines
Lifting slings
Recreational vehicle winch lines
Utility winch and pulling lines

Certifications

ABS Type Approval
DNV Type Approval

Toro™ 12 Strand Tech Sheet

Toro™ 12×12

Back to top

Toro™ 12×12 is a 12-strand braided rope in which each of the 12 strands is, in turn, a 12-strand rope, or braided primary strand. Toro is manufactured from high tenacity High Modulus Polyethylene (HMPE).

This construction addresses the most critical properties of the fibers to provide a very high strength translation efficiency for larger ropes. This design allows for long lay lengths, making rope that is more flexible for bending applications, easy to inspect, and can be quickly spliced using standard 12 strand splicing techniques. Toro 12×12 is supplied with our standard polyurethane finish, although other coatings can be applied to suit specific applications.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
1-5/8	5	62.0	245,000	272,100
1-3/4	5-1/2	72.3	284,300	315,800
2	6	94.9	369,900	410,900
2-1/8	6-1/2	108.9	423,900	470,900
2-1/4	7	121.3	470,100	522,200
2-1/2	7-1/2	147.9	569,400	632,600
2-5/8	8	163.8	630,300	700,200
2-3/4	8-1/2	182.4	698,400	775,900
3	9	215.4	819,000	909,900
3-1/8	9-1/2	233.2	886,500	984,900
3-1/4	10	253.5	961,300	1,068,000
3-1/2	10-1/2	290.7	1,095,300	1,216,800
3-5/8	11	314.1	1,184,300	1,315,700
3-3/4	11-1/2	338.7	1,273,100	1,414,400
4	12	383.5	1,435,200	1,594,500
4-1/8	12-1/2	407.0	1,523,400	1,692,400
4-1/4	13	433.4	1,618,600	1,798,200

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
40	5	92.2	111	123
44	5-1/2	107.6	129	143
48	6	141.3	168	186
52	6-1/2	162.0	192	214
56	7	180.5	213	237
60	7-1/2	220.2	258	287
64	8	243.8	286	318
68	8-1/2	271.5	317	352
72	9	320.6	371	413
76	9-1/2	347.0	402	447
80	10	377.4	436	484
84	10-1/2	432.7	497	552
88	11	467.6	537	597
92	11-1/2	504.1	577	641
96	12	570.8	651	723
100	12-1/2	605.8	691	768
104	13	645.0	734	816

Technical Information

Specific gravity 0.98*
Melting point 284°F (140°C)
Critical temp. 150°F (65°C)
Coefficient of friction 0.09–0.12*
Elongation at break 3%–4%
Fiber water absorption 0%
UV resistance good
Wet abrasion superior
Dry abrasion superior

* value based on data supplied by the
fiber manufacturer for new, dry fiber

Features / Benefits

Highest strength
Very low stretch
Lightweight
Soft hand
Torque free
Easy splicing
Floats
Long lengths available
High flex fatigue and abrasion resistance
Moderate UV resistance
Easy to inspect and repair
Neutrally buoyant in water

Applications

Replacement for wire rope heavy lift slings
Tug vessel assist lines
Vessel mooring lines
Offshore working ropes
Lashings

Certifications

ABS Type Approval
DNV Type Approval

Toro™ 12×12 Tech Sheet

Vectran® 12 Strand and 12×12

Back to top

Vectran® 12 strand and 12×12 is a high strength very low stretch braided rope manufactured using Vectran LCP (Liquid Crystal Polymer) high modulus synthetic fiber yarns. This torque‑free rope is popular in applications when strength, low stretch, heat resistance and zero creep in fiber are required. Vectran 12 strand and 12×12 has excellent bend and flex fatigue resistance and is easily spliced using the lock-stitch type splice, 4-3-2 or 5-4-3 tuck splice.

Vectran 12 strand and 12×12 rope is typically provided with a clear polyurethane coating. Cortland’s original 12×12 construction is available on Vectran braided rope from 1-1/2″ (36 mm) diameter through 8-1/4″ (200 mm) diameter; for strengths and weights above 4″ diameter please contact Cortland.

Nominal Diameter (inches)	Size (circ in.)	Approximate Weight (lbs/100ft)	Minimum Tensile Strength Spliced Rope (lbs)	Minimum Tensile Strength ISO Unspliced Rope (lbs)
12 Strand
0.0165	0.05	0.01	50	56
0.023	0.07	0.02	115	128
0.045	0.14	0.08	300	333
0.055	0.17	0.10	415	460
1/16	3/16	0.15	870	970
0.1	0.30	0.30	1,500	1,670
7/64	21/64	0.46	2,250	2,500
1/8	3/8	.64	2,800	3,100
3/16	9/16	1.3	5,500	6,100
1/4	3/4	2.1	8,000	8,900
5/16	15/16	3.2	11,700	13,000
3/8	1-1/8	5.3	17,500	19,400
7/16	1-1/4	6.1	21,000	23,300
1/2	1-1/2	9.2	31,300	34,800
9/16	1-3/4	11.4	37,900	42,100
5/8	2	15.3	51,400	57,100
3/4	2-1/4	19.2	68,500	76,100
7/8	2-3/4	28.3	92,600	102,900
1	3	33.8	110,000	122,000
1-1/8	3-1/2	46.0	147,000	163,000
1-1/4	3-3/4	52.2	165,000	183,000
1-5/16	4	60.2	196,000	218,000
12x12 Strand
1-1/2	4-1/2	74.6	221,000	246,000
1-5/8	5	94.8	291,000	323,000
1-3/4	5-1/2	113.2	314,000	349,000
2	6	132	355,000	394,000
2-1/8	6-1/2	157	428,000	476,000
2-1/4	7	176	481,000	534,000
2-5/8	8	241	596,000	662,000
2-3/4	8-1/2	270	660,000	733,000
3	9	309	780,000	867,000
3-1/4	10	377	940,000	1,044,000
3-5/8	11	468	1,250,000	1,389,000
4	12	569	1,520,000	1,689,000

Nominal Diameter (mm)	Size (circ in.)	Approximate Weight (kg/100m)	Minimum Tensile Strength Spliced Rope (tonnes)	Minimum Tensile Strength ISO Unspliced Rope (tonnes)
12 Strand
0.419	0.05	0.01	0.02	0.03
0.584	0.07	0.03	0.05	0.06
1.143	0.14	0.12	0.14	0.15
1.397	0.17	0.15	0.2	0.2
1.588	3/16	0.22	0.4	0.4
2.540	0.30	0.45	0.7	0.8
2.778	21/64	0.69	1.0	1.1
3	3/8	0.9	1.3	1.4
5	9/16	1.9	2.5	2.8
6	3/4	3.1	3.6	4
8	15/16	4.8	5.3	5.9
9	1-1/8	7.9	7.9	8.8
11	1-1/4	9.1	9.5	10.6
12	1-1/2	13.7	14.2	15.8
14	1-3/4	17.0	17.2	19.1
16	2	22.8	23.3	25.9
18	2-1/4	28.6	31.1	34.5
22	2-3/4	41.6	42	46.7
24	3	50.4	49.9	55.4
28	3-1/2	68.7	66.7	74
30	3-3/4	77.9	74.9	83
32	4	89.8	88.9	98.9
12x12 Strand
36	4-1/2	111.3	100	112
40	5	141.4	132	147
44	5-1/2	168.9	142	158
48	6	196	161	179
52	6-1/2	235	194	216
56	7	263	218	242
64	8	359	270	300
68	8-1/2	398	299	333
72	9	443	354	393
80	10	561	426	474
88	11	697	567	630
96	12	847	690	766

Technical Information

Specific gravity 1.40*
Melting point 625°F (329°C)
Critical temp. 300°F (149°C)
Coefficient of friction 0.12–0.15*
Elongation at break 3%–4%
Fiber water absorption <0.1%
UV resistance moderate
Wet abrasion excellent
Dry abrasion excellent

* value based on data supplied by the
fiber manufacturer for new, dry fiber

Vectran® 12 Strand and 12×12 Elongation chart

Features / Benefits

High strength
Low stretch
No creep
Soft hand
Torque free
Easy splicing

Applications

Replacement for wire rope
Theatrical rigging
Lifting slings
Utility winch and pulling lines
Recreational vehicle winch lines
Subsea lifting and mooring lines
Seismic

Certifications

ABS Type Approval

Vectran® 12 Strand and 12×12 Tech Sheet

Zylon® / PBO

Back to top

Zylon® Polybenzyloate (PBO) is a rigid-rod isotropic crystal polymer that is spun by a dry-jet wet spinning process.

Zylon / PBO was first developed in the 1980’s and studies suggest the mechanical strength to be more than two times stronger than any other commercialized synthetic fiber. It is also the first organic fiber whose cross-sectional strength outperforms both steel and carbon fiber. Its high creep resistance and tensile strength potentially makes Zylon / PBO as one of the strongest synthetic fibers in the overall fibers market.

The strength of ZYLON® / PBO decreases in the condition of high temperature and high humidity. To maintain its mechanical properties, the fiber should be stored free from exposure to light, high temperature and humidity.

The manufacturing costs involved with the production of Zylon / PBO are also very high, therefore PBO fibers are used mainly in demanding applications such as strength members in defense-application products.

	Tensile Strength			Tensile Modulus			Elongation at Break	Density	Moisture Regain	LOI	Heat Resistance*
Units	cN/dtex	g/d	GPa	cN/dtex	g/d	GPa	%	g/cm3	%		°C	°F
ZYLON-AS (regular)	37	42	5.8	1150	1300	180	3.5	1.54	2	68	650	1202
ZYLON-HM (high modulus)	37	42	5.8	1720	2000	270	2.5	1.56	0.6	68	650	1202
p-Aramid	19	22	2.8	750	850	109	2.4	1.45	4.5	29	550	1022
m-Aramid	4.7	5.3	0.65	124	140	17	22	1.38	4.5	29	400	752
Steel Fiber	3.5	4	2.8	260	290	200	1.4	7.8	0	—	—	—
Carbon Fiber	20	23	3.5	1310	1480	230	1.5	1.76	—	—	—	—
PBI	2.7	3.1	0.4	40	45	5.6	30	1.4	15	41	550	1022
Polyester	8	9	1.1	110	125	15	25	1.38	0.4	17	260	500

*Melting or decomposition

Features / Benefits

Excellent strength & modulus properties
Good flame resistance
Excellent thermal stability
Excellent resistance to creep
Good chemical resistance

Disadvantages

Very poor UV resistance
Poor compressive strength
Strength loss in exposure to strong acids

Applications

Strength member
Defense and military applications

Zylon®/PBO Tech Sheet
